Salam semua,pada kali ini aku ingin menunjukkan kepada anda bagaimanakah caranya kita hendak meletakkan carousel didalam blog kita.Carousel ini boleh kita gunakan untuk meletakkan gambar atau iklan didalamnya.untuk melihat contoh carousel anda boleh lihat disini.Kepada sesiapa yang berminat untuk mencuba meletakkan carousel didalam blog bolehlah ikuti langkah-langkahnya dibawah.'
1.Pergi ke layout--->edit HTML.
2.Untuk meletakkan carousel anda perlu membuat satu lagi column didalam blog anda supaya menjadi seperti gambar dibawah ini .screenshot.1 Sila ikuti langkah-langkah dibawah untuk membuat colum
        1-Sila copy dan pastekan kode dibawah ini dan pastekan diatas </b:skin>
         padding:10px 3px;
        margin:0px 15px 10px 0px;
        border:1px solid #C0C0C0;
       .adscolumn .widget{
      2.Kemudian cari kode dibawah ini
        <div id='main-wrapper'>
       selepas itu copy dan pastekan kode dibawah ini diatas kode    <div id='main-wrapper'> tadi.
       <b:section class='adscolumn' id='adscolumn' preferred='yes'/>

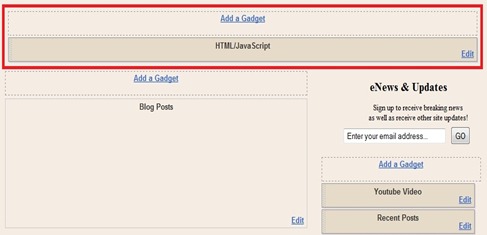

    3.Sekarang anda telah selesai menambah column didalm blog anda.
       sila pergi ke page element untuk melihat hasilnya jika berjaya tahniah diucapkan.
3.Kemudian kita teruskan untuk membuat carousel.Anda copy kode dibawah ini dan pastekan diatas </b:skin>.
        margin: 0;
.carousel .widget {
        width: 920px;
        margin: 0;
.carousel h2{
        position: relative; /*leave this value alone*/
        overflow: scroll; /*leave this value alone*/
        width: 910px; /*Width of Carousel Viewer itself*/
        height: 173px; /*Height should enough to fit largest content's height*/
.stepcarousel .belt{
       position: absolute; /*leave this value alone*/
       left: 0;
       top: 0;
.stepcarousel .panel{
     float: left; /*leave this value alone*/
     overflow: hidden; /*clip content that go outside dimensions of holding panel DIV*/
     margin: 20px; /*margin around each panel*/
     width: 200px; /*Width of each panel holding each content. If removed, widths should be individually defined on each content DIV then. */
.stepcarousel .panel img{
     float: left; /*leave this value alone*/
     background:#1b1d1e; /*clip content that go outside dimensions of holding panel DIV*/
     margin: 0px; /*margin around each panel*/
     border:1px solid #1b1d1e;
3.Kemudian anda copy semua javascript dibawah ini dan pastekan di atas </head>

<script type='text/javascript'>
* Step Carousel Viewer script- (c) Dynamic Drive DHTML code library (www.dynamicdrive.com)
* Visit http://www.dynamicDrive.com for hundreds of DHTML scripts
* This notice must stay intact for legal use

//Step Carousel Viewer: By Dynamic Drive, at http://www.dynamicdrive.com
//** Created: March 19th, 08'
//** Aug 16th, 08'- Updated to v 1.4:
//1) Adds ability to set speed/duration of panel animation (in milliseconds)
//2) Adds persistence support, so the last viewed panel is recalled when viewer returns within same browser session
//3) Adds ability to specify whether panels should stop at the very last and first panel, or wrap around and start all over again
//4) Adds option to specify two navigational image links positioned to the left and right of the Carousel Viewer to move the panels back and forth

//** Aug 27th, 08'- Nav buttons (if enabled) also repositions themselves now if window is resized

//** Sept 23rd, 08'- Updated to v 1.6:
//1) Carousel now stops at the very last visible panel, instead of the last panel itself. In other words, no more white space at the end.
//2) Adds ability for Carousel to auto rotate dictated by the new parameter: autostep: {enable:true, moveby:1, pause:3000}
//2i) During Auto Rotate, Carousel pauses onMouseover, resumes onMouseout. Clicking Carousel halts auto rotate.

//** Oct 22nd, 08'- Updated to v 1.6.1, which fixes functions stepBy() and stepTo() not stopping auto stepping of Carousel when called.

var stepcarousel={
ajaxloadingmsg: '<div style="margin: 1em; font-weight: bold"><img src="ajaxloadr.gif" style="vertical-align: middle" /> Fetching Content. Please wait...</div>', //customize HTML to show while fetching Ajax content
defaultbuttonsfade: 0.4, //Fade degree for disabled nav buttons (0=completely transparent, 1=completely opaque)
configholder: {},

getCSSValue:function(val){ //Returns either 0 (if val contains 'auto') or val as an integer
return (val=="auto")? 0 : parseInt(val)

getremotepanels:function($, config){ //function to fetch external page containing the panel DIVs
url: config.contenttype[1], //path to external content
async: true,
config.$belt.html('Error fetching content.<br />Server Response: '+ajaxrequest.responseText)
stepcarousel.alignpanels($, config)

getoffset:function(what, offsettype){
return (what.offsetParent)? what[offsettype]+this.getoffset(what.offsetParent, offsettype) : what[offsettype]

var re=new RegExp(Name+"=[^;]+", "i"); //construct RE to search for target name/value pair
if (document.cookie.match(re)) //if cookie found
return document.cookie.match(re)[0].split("=")[1] //return its value
return null

setCookie:function(name, value){
document.cookie = name+"="+value

fadebuttons:function(config, currentpanel){
config.$leftnavbutton.fadeTo('fast', currentpanel==0? this.defaultbuttonsfade : 1)
config.$rightnavbutton.fadeTo('fast', currentpanel==config.lastvisiblepanel? this.defaultbuttonsfade : 1)

addnavbuttons:function(config, currentpanel){
config.$leftnavbutton=$('<img src="'+config.defaultbuttons.leftnav[0]+'">').css({zIndex:50, position:'absolute', left:config.offsets.left+config.defaultbuttons.leftnav[1]+'px', top:config.offsets.top+config.defaultbuttons.leftnav[2]+'px', cursor:'hand', cursor:'pointer'}).attr({title:'Back '+config.defaultbuttons.moveby+' panels'}).appendTo('body')
config.$rightnavbutton=$('<img src="'+config.defaultbuttons.rightnav[0]+'">').css({zIndex:50, position:'absolute', left:config.offsets.left+config.$gallery.get(0).offsetWidth+config.defaultbuttons.rightnav[1]+'px', top:config.offsets.top+config.defaultbuttons.rightnav[2]+'px', cursor:'hand', cursor:'pointer'}).attr({title:'Forward '+config.defaultbuttons.moveby+' panels'}).appendTo('body')
config.$leftnavbutton.bind('click', function(){ //assign nav button event handlers
stepcarousel.stepBy(config.galleryid, -config.defaultbuttons.moveby)
config.$rightnavbutton.bind('click', function(){ //assign nav button event handlers
stepcarousel.stepBy(config.galleryid, config.defaultbuttons.moveby)
if (config.panelbehavior.wraparound==false){ //if carousel viewer should stop at first or last panel (instead of wrap back or forth)
this.fadebuttons(config, currentpanel)
return config.$leftnavbutton.add(config.$rightnavbutton)


alignpanels:function($, config){
var paneloffset=0
config.paneloffsets=[paneloffset] //array to store upper left offset of each panel (1st element=0)
config.panelwidths=[] //array to store widths of each panel
config.$panels.each(function(index){ //loop through panels
var $currentpanel=$(this)
$currentpanel.css({float: 'none', position: 'absolute', left: paneloffset+'px'}) //position panel
$currentpanel.bind('click', function(e){return config.onpanelclick(e.target)}) //bind onpanelclick() to onclick event
paneloffset+=stepcarousel.getCSSValue($currentpanel.css('marginRight')) + parseInt($currentpanel.get(0).offsetWidth || $currentpanel.css('width')) //calculate next panel offset
config.paneloffsets.push(paneloffset) //remember this offset
config.panelwidths.push(paneloffset-config.paneloffsets[config.paneloffsets.length-2]) //remember panel width
config.paneloffsets.pop() //delete last offset (redundant)
var addpanelwidths=0
var lastpanelindex=config.$panels.length-1
for (var i=config.$panels.length-1; i>=0; i--){
addpanelwidths+=(i==lastpanelindex? config.panelwidths[lastpanelindex] : config.paneloffsets[i+1]-config.paneloffsets[i])
if (config.gallerywidth>addpanelwidths){
config.lastvisiblepanel=i //calculate index of panel that when in 1st position reveals the very last panel all at once based on gallery width
config.$belt.css({width: paneloffset+'px'}) //Set Belt DIV to total panels' widths
config.currentpanel=(config.panelbehavior.persist)? parseInt(this.getCookie(window[config.galleryid+"persist"])) : 0 //determine 1st panel to show by default
config.currentpanel=(typeof config.currentpanel=="number" && config.currentpanel<config.$panels.length)? config.currentpanel : 0
if (config.currentpanel!=0){
var endpoint=config.paneloffsets[config.currentpanel]+(config.currentpanel==0? 0 : config.beltoffset)
config.$belt.css({left: -endpoint+'px'})
if (config.defaultbuttons.enable==true){ //if enable default back/forth nav buttons
var $navbuttons=this.addnavbuttons(config, config.currentpanel)
$(window).bind("load resize", function(){ //refresh position of nav buttons when page loads/resizes, in case offsets weren't available document.oncontentload
config.offsets={left:stepcarousel.getoffset(config.$gallery.get(0), "offsetLeft"), top:stepcarousel.getoffset(config.$gallery.get(0), "offsetTop")}
config.$leftnavbutton.css({left:config.offsets.left+config.defaultbuttons.leftnav[1]+'px', top:config.offsets.top+config.defaultbuttons.leftnav[2]+'px'})
config.$rightnavbutton.css({left:config.offsets.left+config.$gallery.get(0).offsetWidth+config.defaultbuttons.rightnav[1]+'px', top:config.offsets.top+config.defaultbuttons.rightnav[2]+'px'})
if (config.autostep && config.autostep.enable){ //enable auto stepping of Carousel?
var $carouselparts=config.$gallery.add(typeof $navbuttons!="undefined"? $navbuttons : null)
$carouselparts.bind('click', function(){
$carouselparts.hover(function(){ //onMouseover
}, function(){ //onMouseout
if (config.steptimer && config.autostep.hoverstate=="over" && config.autostep.status!="stopped"){
}, 500)
config.steptimer=setTimeout(function(){stepcarousel.autorotate(config.galleryid)}, config.autostep.pause) //automatically rotate Carousel Viewer
} //end enable auto stepping check

stepTo:function(galleryid, pindex){ /*User entered pindex starts at 1 for intuitiveness. Internally pindex still starts at 0 */
var config=stepcarousel.configholder[galleryid]
if (typeof config=="undefined"){
alert("There's an error with your set up of Carousel Viewer \""+galleryid+ "\"!")
var pindex=Math.min(pindex-1, config.paneloffsets.length-1)
var endpoint=config.paneloffsets[pindex]+(pindex==0? 0 : config.beltoffset)
if (config.panelbehavior.wraparound==false && config.defaultbuttons.enable==true){ //if carousel viewer should stop at first or last panel (instead of wrap back or forth)
this.fadebuttons(config, pindex)
config.$belt.animate({left: -endpoint+'px'}, config.panelbehavior.speed, function(){config.onslideaction(this)})

stepBy:function(galleryid, steps){ //isauto if defined indicates stepBy() is being called automatically
var config=stepcarousel.configholder[galleryid]
if (typeof config=="undefined"){
alert("There's an error with your set up of Carousel Viewer \""+galleryid+ "\"!")
var direction=(steps>0)? 'forward' : 'back' //If "steps" is negative, that means backwards
var pindex=config.currentpanel+steps //index of panel to stop at
if (config.panelbehavior.wraparound==false){ //if carousel viewer should stop at first or last panel (instead of wrap back or forth)
pindex=(direction=="back" && pindex<=0)? 0 : (direction=="forward")? Math.min(pindex, config.lastvisiblepanel) : pindex
if (config.defaultbuttons.enable==true){ //if default nav buttons are enabled, fade them in and out depending on if at start or end of carousel
stepcarousel.fadebuttons(config, pindex)
else{ //else, for normal stepBy behavior
if (pindex>config.lastvisiblepanel && direction=="forward"){
//if destination pindex is greater than last visible panel, yet we're currently not at the end of the carousel yet
pindex=(config.currentpanel<config.lastvisiblepanel)? config.lastvisiblepanel : 0
else if (pindex<0 && direction=="back"){
//if destination pindex is less than 0, yet we're currently not at the beginning of the carousel yet
pindex=(config.currentpanel>0)? 0 : config.lastvisiblepanel /*wrap around left*/
var endpoint=config.paneloffsets[pindex]+(pindex==0? 0 : config.beltoffset) //left distance for Belt DIV to travel to
if (pindex==0 && direction=='forward' || config.currentpanel==0 && direction=='back' && config.panelbehavior.wraparound==true){ //decide whether to apply "push pull" effect
config.$belt.animate({left: -config.paneloffsets[config.currentpanel]-(direction=='forward'? 100 : -30)+'px'}, 'normal', function(){
config.$belt.animate({left: -endpoint+'px'}, config.panelbehavior.speed, function(){config.onslideaction(this)})
config.$belt.animate({left: -endpoint+'px'}, config.panelbehavior.speed, function(){config.onslideaction(this)})

var config=stepcarousel.configholder[galleryid]
if (config.$gallery.attr('_ismouseover')!="yes"){
this.stepBy(galleryid, config.autostep.moveby)
config.steptimer=setTimeout(function(){stepcarousel.autorotate(galleryid)}, config.autostep.pause)

var config=stepcarousel.configholder[galleryid]
var startpoint=config.currentpanel //index of first visible panel
var visiblewidth=0
for (var endpoint=startpoint; endpoint<config.paneloffsets.length; endpoint++){ //index (endpoint) of last visible panel
if (visiblewidth>config.gallerywidth){
startpoint+=1 //format startpoint for user friendiness
endpoint=(endpoint+1==startpoint)? startpoint : endpoint //If only one image visible on the screen and partially hidden, set endpoint to startpoint
var valuearray=[startpoint, endpoint, config.panelwidths.length]
for (var i=0; i<config.statusvars.length; i++){
window[config.statusvars[i]]=valuearray[i] //Define variable (with user specified name) and set to one of the status values
config.$statusobjs[i].text(valuearray[i]+" ") //Populate element on page with ID="user specified name" with one of the status values

//Disable Step Gallery scrollbars ASAP dynamically (enabled for sake of users with JS disabled)
document.write('<style type="text/css">\n#'+config.galleryid+'{overflow: hidden;}\n</style>')
config.offsets={left:stepcarousel.getoffset(config.$gallery.get(0), "offsetLeft"), top:stepcarousel.getoffset(config.$gallery.get(0), "offsetTop")}
config.$belt=config.$gallery.find('.'+config.beltclass) //Find Belt DIV that contains all the panels
config.$panels=config.$gallery.find('.'+config.panelclass) //Find Panel DIVs that each contain a slide
config.panelbehavior.wraparound=(config.autostep && config.autostep.enable)? true : config.panelbehavior.wraparound //if auto step enabled, set "wraparound" to true
config.onpanelclick=(typeof config.onpanelclick=="undefined")? function(target){} : config.onpanelclick //attach custom "onpanelclick" event handler
config.onslideaction=(typeof config.onslide=="undefined")? function(){} : function(beltobj){$(beltobj).stop(); config.onslide()} //attach custom "onslide" event handler
config.oninit=(typeof config.oninit=="undefined")? function(){} : config.oninit //attach custom "oninit" event handler
config.beltoffset=stepcarousel.getCSSValue(config.$belt.css('marginLeft')) //Find length of Belt DIV's left margin
config.statusvars=config.statusvars || [] //get variable names that will hold "start", "end", and "total" slides info
config.$statusobjs=[$('#'+config.statusvars[0]), $('#'+config.statusvars[1]), $('#'+config.statusvars[2])]
stepcarousel.configholder[config.galleryid]=config //store config parameter as a variable
if (config.contenttype[0]=="ajax" && typeof config.contenttype[1]!="undefined") //fetch ajax content?
stepcarousel.getremotepanels($, config)
stepcarousel.alignpanels($, config) //align panels and initialize gallery
}) //end document.ready
jQuery(window).bind('unload', function(){ //clean up
if (config.panelbehavior.persist){
stepcarousel.setCookie(window[config.galleryid+"persist"], config.currentpanel)
jQuery.each(config, function(ai, oi){

jika anda mempunyai hosting sendiri upload javascript itu dan copy urlnya kemudian buat seperti dibawah
<script src=' url javascript yang ada upload itu ' type='text/javascript'/>
4.Kemudian anda copy dan pastekan javascript beserta kode ini didalam column yang mula-mula anda buat tadi.
<script type="text/javascript">
    galleryid: 'mygallery', //id of carousel DIV
    beltclass: 'belt', //class of inner "belt" DIV containing all the panel DIVs
    panelclass: 'panel', //class of panel DIVs each holding content
    autostep: {enable:true, moveby:1, pause:3000},
    panelbehavior: {speed:500, wraparound:false, persist:true},
    defaultbuttons: {enable: true, moveby: 1, leftnav: ['http://i41.tinypic.com/j0b0j7.png', 30, 60], rightnav: ['http://i41.tinypic.com/mcu1zk.png', -65, 60]},
    statusvars: ['statusA', 'statusB', 'statusC'], //register 3 variables that contain current panel (start), current panel (last), and total panels
    contenttype: ['inline'] //content setting ['inline'] or ['external', 'path_to_external_file']
}) </script>
<div id="mygallery" class="stepcarousel">
<div class="belt">
<!—tukarkan url dibawah ini kepada url anda sendiri-->
<div class="panel">
<a href="url blog anda"><img src="url gambar anda disimpan"/></a>
<!—untuk menambah lagi gambar anda hanya perlu menambah kode diatas ini dan anda bebas membuat seberapa banyak gambar yang anda suka-->
5.Sekian.semoga berjaya.Jika ada masalah sila tinggalkan komen anda dibawah aku akan cuba menolong anda nanti.
P/S: Anda hanya perlu membuat gambar berukuran 180X135 atau anda boleh mengecilkan ataupun membesarkannya lagi mengikut kretiviti anda,kemudian upload gambar anda itu di photobucket,flicker atau dimana sahaja tempat menyimpan gambar kemudian letakkan link url itu di tempat yang aku tuliskan url gambar anda disimpan itu.
Yang aku tandakan dengan warna merah anda boleh tukarkan mengikut kesesuain blog anda.


  1. eh.. ni macam slider gak ker..?

  2. lebih kurang dgn slider cuma gmbr dia kecik2

  3. ariey, hurm aku da makin putus asa dgn code sebab tgk la ape da jadi ngan blog aku kan. rase nak reset blog tapi butang reset da takdee...rindu nak main code..=(

  4. tula lain kali back dulu template sblm tambah apa-apa code sbb utk langkah keselamatan kalau x jd kita boleh install balik template itu.

  5. huh. mcm slide jgk la. bnyk tol tut ko ye. haha. blog aku xsesuai kn ltk?

  6. Acap ko boleh kecik kan sikit saiz dia baru cantik..ltk bahagian footer pun ok jgk

  7. makin hari makin bnyk tutorial bro..ni rase nk buat je..hoho

  8. hehe biasala nama pun blog tutorial..tryla wat zizan bolehla ltk gambar awek dlm blog haha

  9. aku dah test buat.. tp tak jadi la pulak.. adess.. kluar gambar jer tp xde slider tu..

    ntah kat mane la aku silap tu.. nnt dah hilang tensen aku test smula la..

  10. hehe xpe ezany cuba lg ya mgkn ada tertinggal yg mana2 tu

  11. aku maleh nak try dah.. 3 version aku try.. sume pun tak bape nak jadi.. :-t

    agaknya tak sesuai ngan template aku tu kot.. 8-}

  12. ye ke ezany hehe xpe nanti aku tlg ko

  13. Pengen yang lebih seru ...
    Ayo kunjungi wwwasianbet77com
    Buktikan sendiri ..

    Real Play = Real Money

    - Referal 5 + 1 % ( seumur hidup ) .
    - Cash Back up to 10 % .
    - Bonus Royalty Rewards setiap bulan .

    untuk Informasi lebih jelasnya silahkan hubungi CS kami :
    - YM : op1_asianbet77@yahoo.com
    - EMAIL : asianbet77@yahoo.com
    - WHATSAPP : +63 905 213 7234
    - WECHAT : asianbet_77
    - SMS CENTER : +63 905 209 8162
    - PIN BB : 2B4BB06A / 28339A41

    Salam Admin ,


Sila tinggalkan komen ada dibawah ini dan yang berkenaan dengan post sahaja dan semua komen akan ditapis dahulu sebelum ditampilkan.
